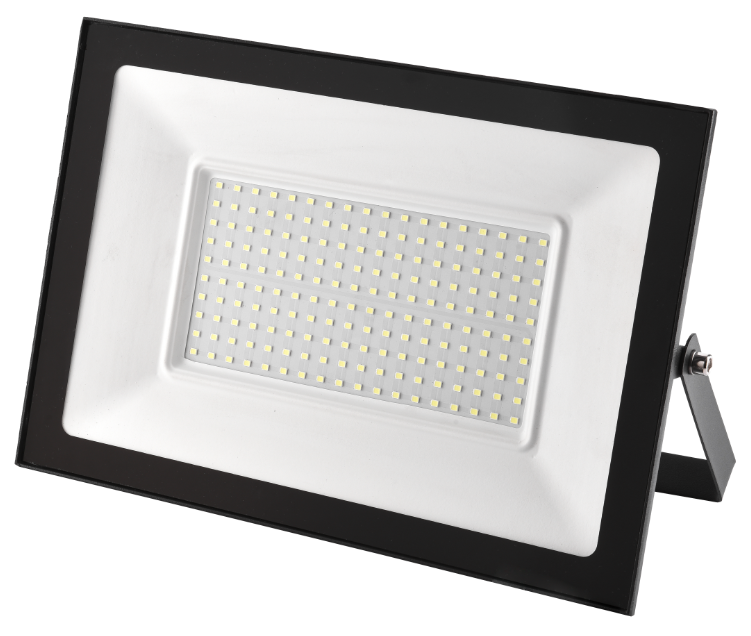

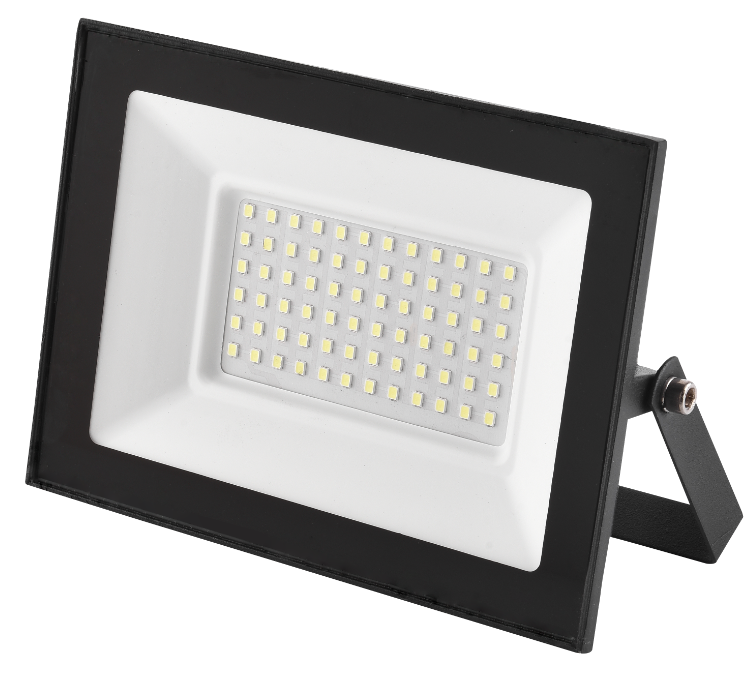

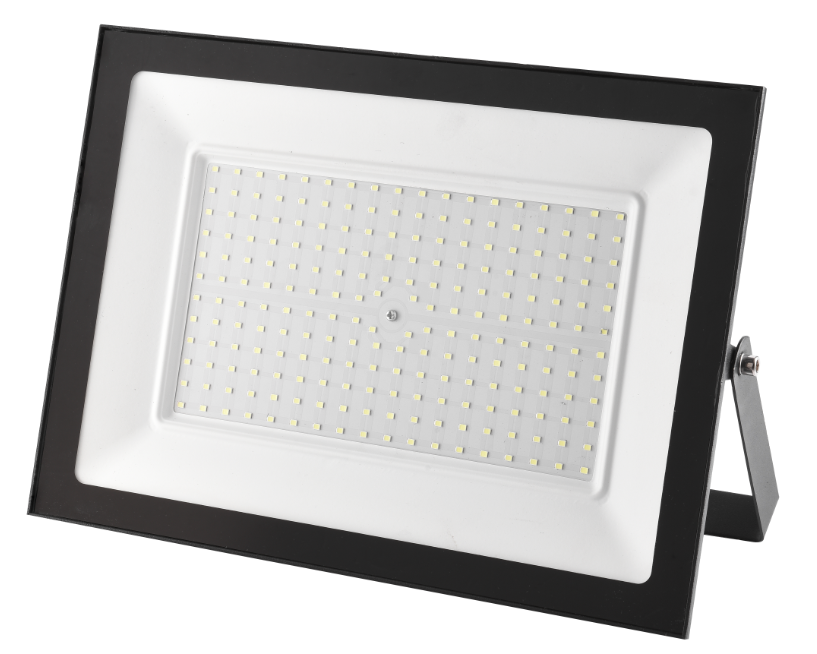

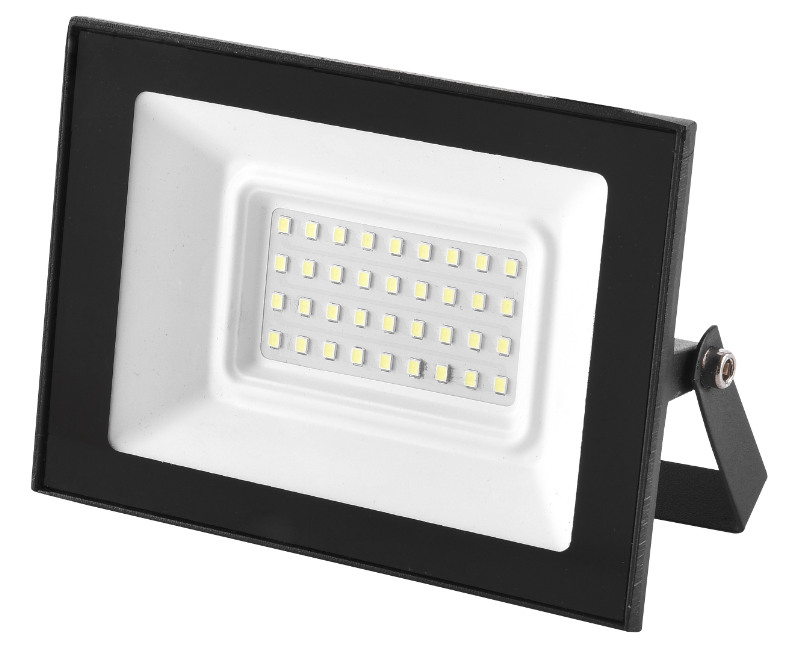

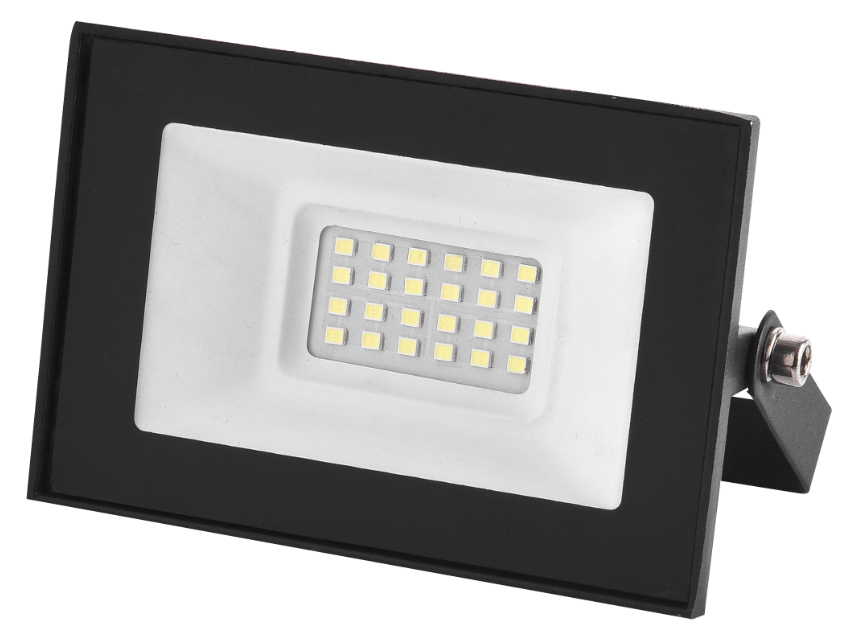

DFL7
Application
Widely used in building facades, plaza, garden landscape, golf courses, villas, farms and other outdoor places
Contact Supplier
Model Sprcification Features
Model DFL7-10W
 		DFL7-20W
 		DFL7-30W
 		DFL7-50W
 		DFL7-70W
 		DFL7-100W
 		DFL7-150W
 		DFL7-200W
 		DFL7-300W
 		DFL10-400W









Size LxWxH(mm) 100x70x30 100x70x30 125x80x30 150x105x30 170x120x30 240x160x30 300x200x30 320x231x38 370x265x35 380x310x35
Watt 10W 20W 30W 50W 70W 100W 150W 200W 300W 400W
Voltage AC 100-265V AC 100-265V AC 100-265V AC 100-265V AC 100-265V AC 100-265V AC 100-265V AC 100-265V AC 100-265V AC 100-265V
Frequency 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz 50/60Hz
Lumen Flux 900lm 1800lm 2700lm 4500lm 6300lm 9000lm 13500lm 18000lm 27000lm 36000lm
Luminous Efficiency 90lm/W
 		90lm/W
 		90lm/W
 		90lm/W
 		90lm/W
 		90lm/W
 		90lm/W
 		90lm/W
 		90lm/W
 		90lm/W
CRI Ra>72 Ra>72 Ra>72 Ra>72 Ra>72 Ra>72 Ra>72 Ra>72 Ra>72 Ra>72
Power Factor >0.5
 		>0.5
 		>0.5
 		>0.5
 		>0.5
 		>0.5
 		>0.5
 		>0.5
 		>0.5
 		>0.5
Color Temperature 3000-6500K
 		3000-6500K
 		3000-6500K
 		3000-6500K
 		3000-6500K
 		3000-6500K
 		3000-6500K
 		3000-6500K
 		3000-6500K
 		3000-6500K
Beam Angle 120
 		120
 		120
 		120
 		120
 		120
 		120
 		120
 		120
 		120
Life Span >30000 >30000 >30000 >30000 >30000 >30000 >30000 >30000 >30000 >30000

CEA 7th generation flood light is mini design with exceelent performance

High quality Die-cast aluminium housing, anti-corrosion

Nano material reflector, nice looking and excellent reflection

High efficiency and low decay led chip, long lifetime

IP65 waterproof protection
